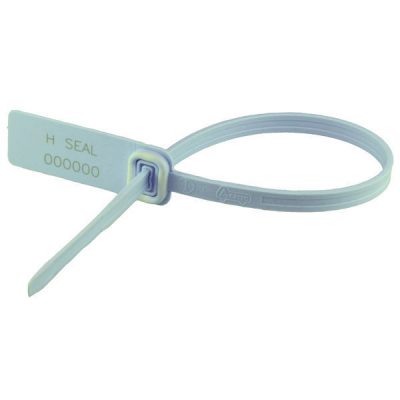

H Seal is a smooth ribbon, pull-tight seal manufactured from Polypropylene material. The design features rolled heat staking technology to secure the metal spring insert to the body, which provides clear evidence of tampering if forced open or cut. The seal can be manufactured with or without gripping spikes and label tag if required. This seal is suitable for many applications where strength is the requirement.
Material Body - Polypropylene Insert - Spring Stainless Steel Available Operating Lengths (L1) 25cm (overall 30.4cm) (L2) 30cm (overall 35.4cm) (L3) 35cm (overall 40.4cm) Strap Width 7mm Tag Marking Dimensions 22mm x 45mm Average Breaking Strength 55kg
Marking Laser or Foil marking Consecutively numbered as standard Optional Customer name/logo Optional Laser Barcoding
Recommended Applications Airlines, Cargo, Trailers, Tankers, Rail & Sea Freight, Containers, Refineries, Warehouses, Cash bags, Postbags, Valves, Hatches, Lockers.
Colours Foil marked: red, blue, green, yellow, orange, black, white. Laser or Foil marked: pastel shades of pink, blue, green, yellow, peach, also black and white. Other colours may be available on request. Packaging Standard Packaging : 10 per mat and 1,000 seals/carton Carton Dimensions : (L1) - 33.5cm x 24cm x 33cm : (L2) - 38.5cm x 24cm x 33cm : (L3) - 43.5cm x 24cm x 33cm Carton weight : (L1) - 5.37kg/carton : (L2) - 5.90kg/carton : (L3) - 6.70kg/carton
